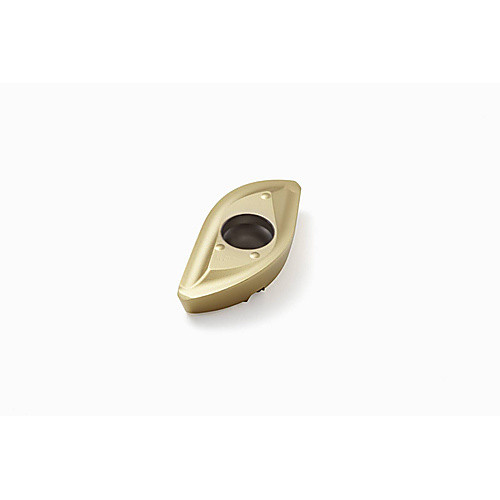

218.20-160ER-M08
Milling Insert; 1.205″ Length × 1/2″ Width × 0.252″ Thickness ; F25M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | F25M |
| Cutting Edge Length (L) | 1.205″ | Shape | Elliptical |
| Corner Radius (RE) | 0.6299″ | Insert Size | 160ER |
| Depth of Cut Maximum (APMX) | 1.205″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 1/2″ | Chip Breaker Type | M08 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.252″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 2 |
| Coating | TiAlN |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.035
