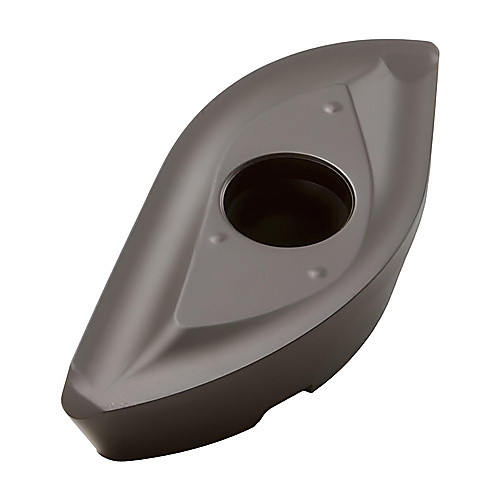

218.20-150ER-M08
Milling Insert; 1.13″ Length × 0.469″ Width × 0.236″ Thickness ; MM4500 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | | Grade | MM4500 |
| Cutting Edge Length (L) | 1.13″ | Shape | Elliptical |
| Corner Radius (RE) | 0.5906″ | Insert Size | 150ER |
| Depth of Cut Maximum (APMX) | 1.13″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.469″ | Chip Breaker Type | M08 |
| Inscribed Circle Diameter (IC) | 0.4689″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.236″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 2 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.031
