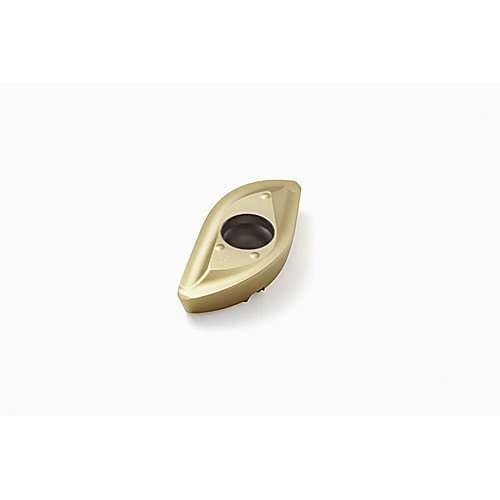

218.20-125ER-M07 F40M
Milling Insert; 24.43 mm Length × 10.74 mm Width × 5.05 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 24.43 mm | Shape | Ball Nose |
| Corner Radius (RE) | 0.4921″ | Insert Size | 125ER |
| Depth of Cut Maximum (APMX) | 0.962″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 10.74 mm | Chip Breaker Type | M07 |
| Inscribed Circle Diameter (IC) | 0.4228″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 5.05 mm | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 1 Degrees | Number of Cutting Edges | 2 |
| Coating | TiAlN |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.246
