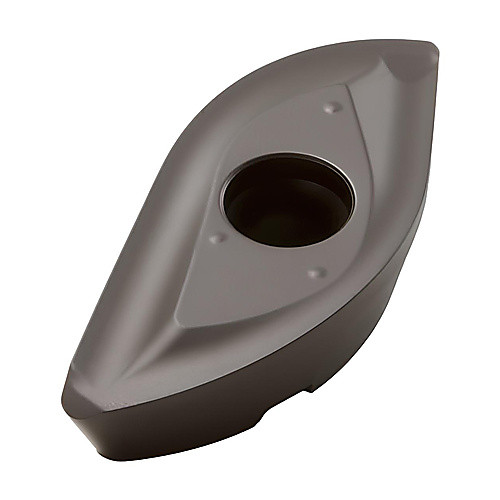

218.20-0.750ER-M10
Milling Insert; 1.435″ Length × 0.595″ Width × 0.3″ Thickness ; MM4500 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | | Coating | | Al2O3 | TiCN | |
| Cutting Edge Length (L) | 1.435″ | Grade | MM4500 |
| Corner Radius (RE) | 3/4″ | Shape | Elliptical |
| Depth of Cut Maximum (APMX) | 1.435″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.595″ | Chip Breaker Type | M10 |
| Inscribed Circle Diameter (IC) | 0.5953″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.3″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.064
