218.19-160T-04-ME08 GRADE F40M INSERT

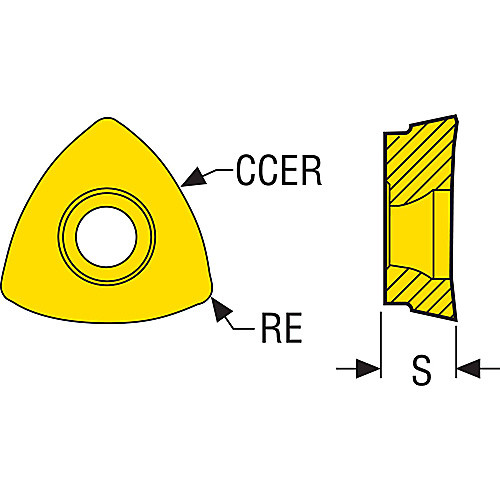

Milling Insert; 0.4402″ Length × 0.4402″ Width × 4.76 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.4402″ | Shape | Trigon |
| Corner Radius (RE) | 1.2 mm | Insert Size | 160T-04 |
| Depth of Cut Maximum (APMX) | 0.079″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.4402″ | Chip Breaker Type | ME08 |
| Inscribed Circle Diameter (IC) | 11.18 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 4.76 mm | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 20 Degrees | Number of Cutting Edges | 3 |
| Coating | TiAlN |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.011
