CDE323R005 IN10K

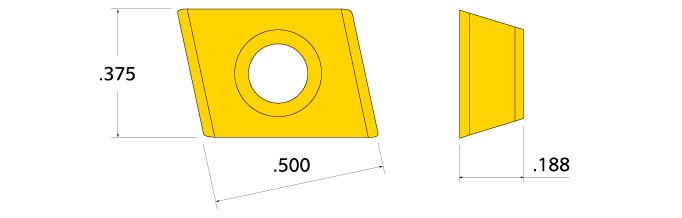

Milling Insert; CDE323R005 IN10K PWRMAX IN10K 1/2″ Length × 3/8″ Width × 0.188″ Thickness ; Carbide
| Applicable Material | Cast Iron|Non-Ferrous Metals | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | CDE323R005 |
| Cutting Edge Length (L) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 3/8″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.188″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IN10K | Body Material | Carbide |
Product Features
| Family Description | CDE323R05 | Country of Origin | Germany |
Shipping Info
Package Weight
0.02
