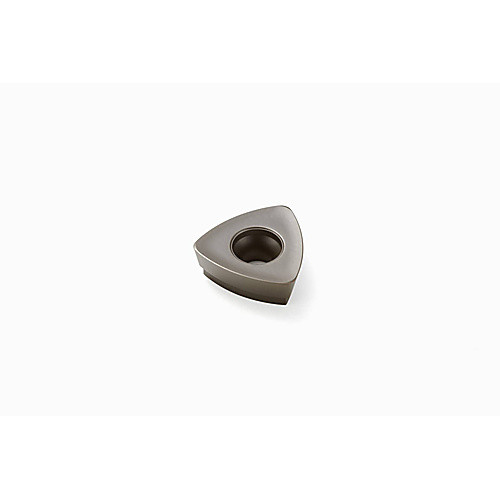

218.19-125T-T3-M07
Milling Insert; 218.19-125T-T3-M07 MS2500 MS2500 × 0.156″ Thickness ; Carbide ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Super-Alloys / Titanium | | Grade | MS2500 |
| Cutting Edge Length (L) | 0.3504″ | Shape | Trigon |
| Corner Radius (RE) | 0.031″ | Insert Size | 125T-T3 |
| Depth of Cut Maximum (APMX) | 0.059″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.3504″ | Chip Breaker Type | M07 |
| Inscribed Circle Diameter (IC) | 0.35″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.156″ | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 60 Degrees | Number of Cutting Edges | 3 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
