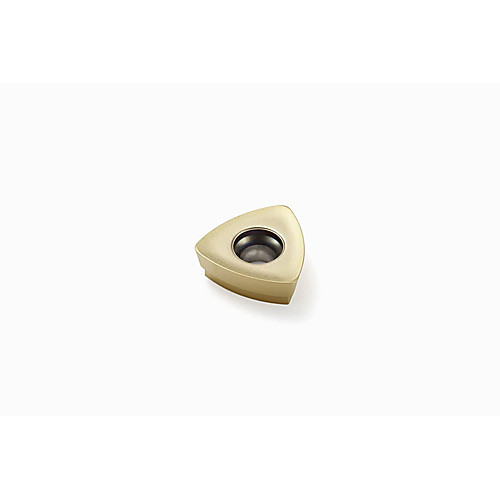

218.19-100T-M06 F40M
Milling Insert; 218.19-100T-M06 F40M F40M × 2.78 mm Thickness ; Carbide ; TiAlN+TiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.278″ | Shape | Trigon |
| Corner Radius (RE) | 0.8 mm | Insert Size | 100T |
| Depth of Cut Maximum (APMX) | 0.029″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.278″ | Chip Breaker Type | M06 |
| Inscribed Circle Diameter (IC) | 7.06 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 2.78 mm | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 20 Degrees | Number of Cutting Edges | 3 |
| Coating | TiAlN |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.002
