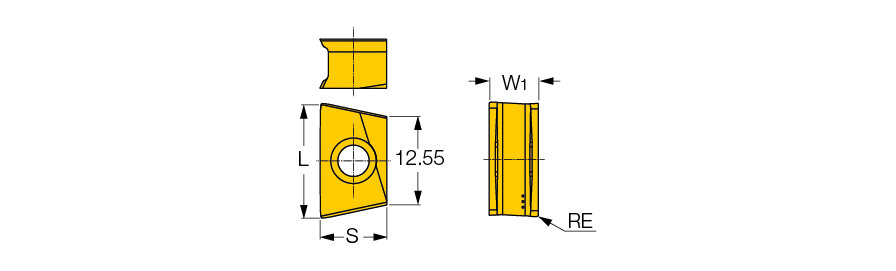

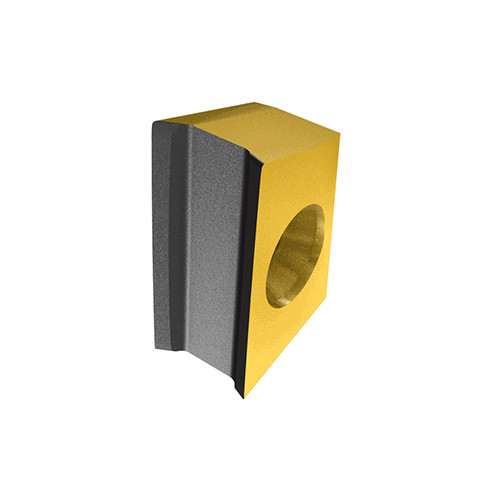

FIN LNAT 1607 PN-R IC808
Milling Insert; FINLNAT1607 PN-R IC808 IC808 × 7 mm Width × 9.5 mm Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Insert Length (INSL) | 16.1 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.3 mm | Cutting Edge Material | Carbide |
| Insert Width (W1) | 7 mm | Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 9.5 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 2 |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808 | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped peripherally ground inserts with 2 positive rake cutting edges for finishing applications on steel and high temperature alloys. Designed for extended flute cutters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.022
