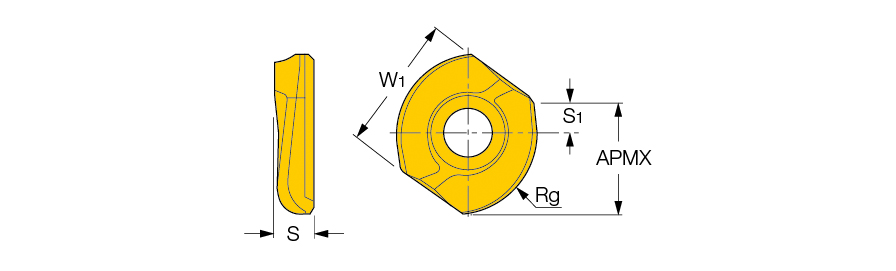

CR D100-MT IC350
Milling Insert; CRD100MT IC350 IC350 × 8.04 mm Width × 2.2 mm Thickness ; Carbide ; TiCN
| Applicable Material | Steel |Cast Iron | | Shape | Round |
| Application | | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 6.4 mm | Tool Type | Double sided Inserts |
| Insert Width (W1) | 8.04 mm | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Insert Thickness (S) | 2.2 mm | Number of Cutting Edges | 2 |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC350 | Body Material | Carbide |
Product Features
| Family Description | Ball nose 10 mm diameter profiling insert. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
