BLR D200-MFW IC830
Milling Insert; BLR D200-MFW IC830 IC830 × 7.6 mm Width × 3.4 mm Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Neutral |
| Insert Length (INSL) | 0 mm | Cutting Edge Material | Carbide |

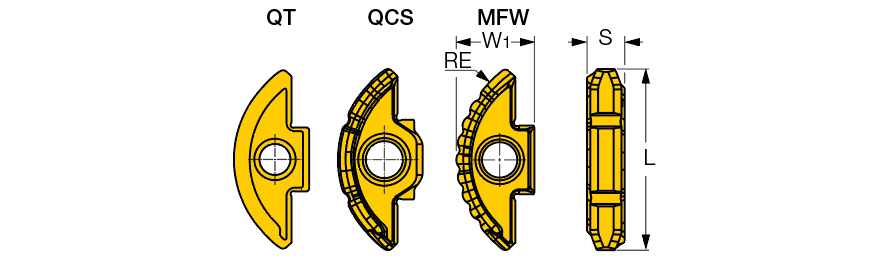

| Corner Radius (RE) | 10 mm | Tool Type | Double sided Inserts |
| Insert Width (W1) | 7.6 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 3.4 mm | Number of Cutting Edges | 2 |
| Coating | AlTiN+TiN | Measurement Type | Metric |
| Grade | IC830 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Round segment double-sided inserts for ball nose milling cutters | Country of Origin | Israel |

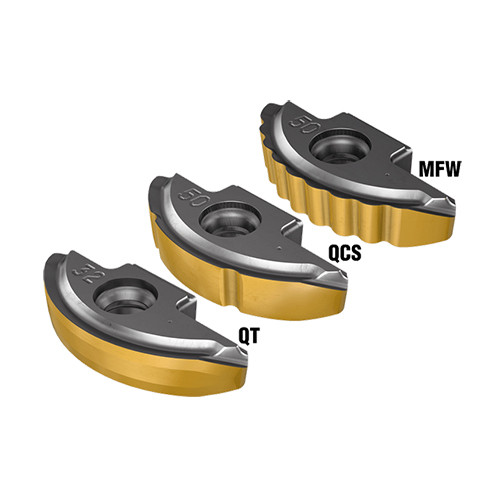

| Remarks | MFW - Serrated cutting edge for roughing operations QCS - Chip splitting cutting edge for semi-finish applications QT - Round edge for finishinging applications |
Shipping Info
Package Weight
0.009
