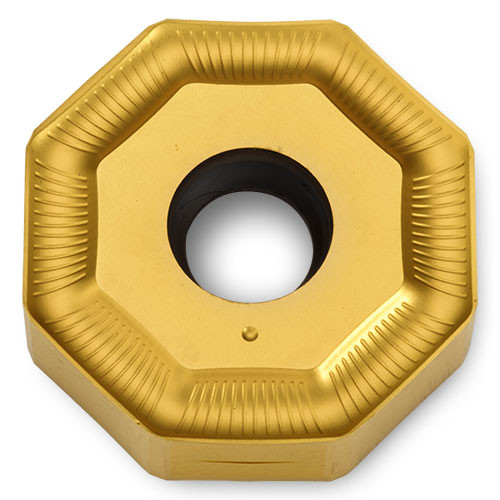

ONCU090612TN-W IN2505
Milling Insert; ONCU090612TNW IN2505 IN2505 × 0.258″ Thickness ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Shape | Round |
| Corner Radius (RE) | 0.047″ | Insert Style | ONCU090612TN-W |
| Inscribed Circle Diameter (IC) | 0.842″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.258″ | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.157″ | Number of Cutting Edges | 4 |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Grade | IN2505 | Body Material | Steel |
Product Features
| Family Description | Long wiper is crowned for optimal finish Radius corner blends for durability Facet corner blends to diffuse piece part breakout Positive rake face for efficient chip formation 4 indexes RH & 4 indexes LH | Country of Origin | Germany |
Shipping Info
Package Weight
0.061
