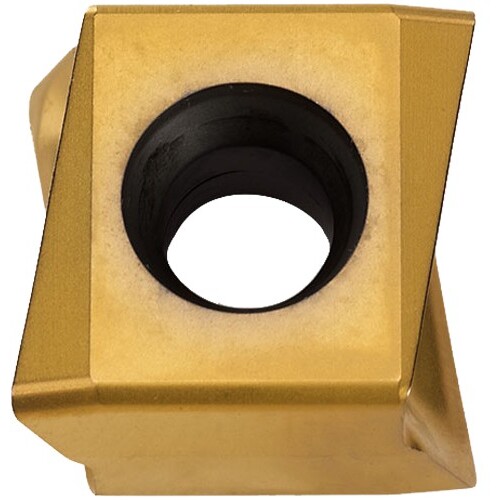

DGM212R100 IN2030
Milling Insert; DGM212R100 IN2030 IN2030 0.331″ Length × 0.272″ Width × 0.169″ Thickness ; Carbide ; TiAlN
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hi-Temp Alloys | Insert Style | DGM212R100 |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 0.331″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.015″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.272″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.169″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2030 | Body Material | Carbide |
| Shape | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
.44000
Package Width
.43000
Package Height
.17000
Package Weight
0.025
