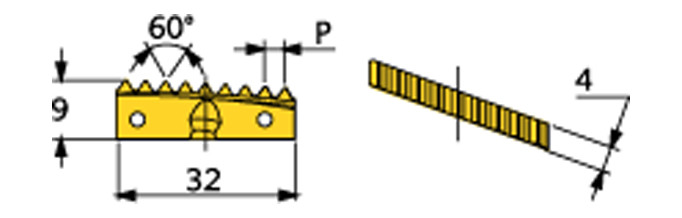

LYER32060UN IN2005
Milling Insert; LYER32060UN I IN2005 IN2005 ; Carbide ; TiAlN
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Non Ferrous Metals |Hi-Temp Alloys | | Insert Style | LYER32060UN |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 5.2 mm | Tool Type | Single sided Inserts |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | IN2005 | Measurement Type | Inch |
| Shape | Round | Body Material | Carbide |
Product Features
| Family Description | LYER32060UN | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.04
