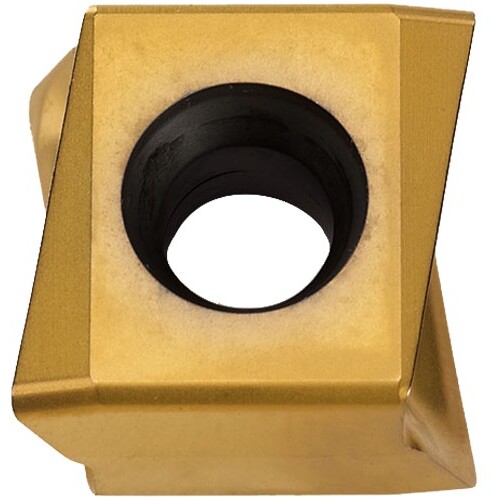

DGE314R001 IN2030

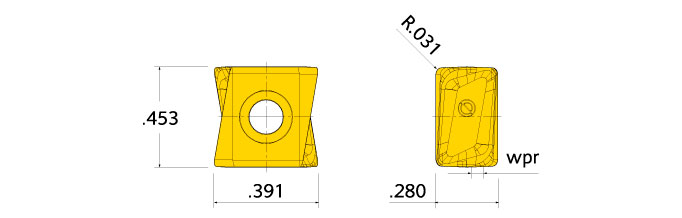

Milling Insert; .GE314R001 IN2030 IN2030 0.453″ Length × 0.28″ Width ; Carbide ; TiAlN
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | DGE314R001 |
| Cutting Edge Length (L) | 0.453″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.28″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2030 | Body Material | Carbide |
Product Features
| Family Description | DGE314R001 | Country of Origin | USA |
Shipping Info
Package Weight
0.04
