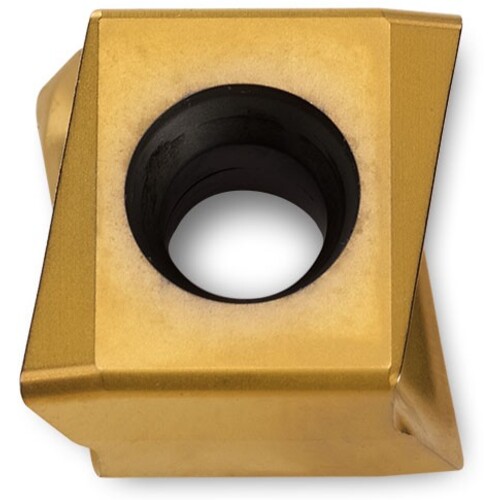

DGM324R201 IN2005
Milling Insert; 0.571″ Length × 0″ Width × 0.315″ Thickness ; IN2005 ; Carbide ; TiAlN
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Non-Ferrous Metals|Hi-Temp Alloys | Insert Style | DGM324R201 |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 0.571″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2005 | Body Material | Carbide |
| Shape | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.04
