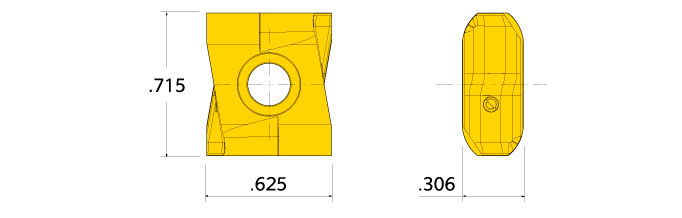

DPM434L101 IN2030
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | DPM434L101 |
| Cutting Edge Length (L) | 5/8″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.2″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.715″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.306″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2030 | Body Material | Carbide |
Product Features
| Family Description | DPM434L101 | Country of Origin | USA |
Shipping Info
Package Weight
0.06
