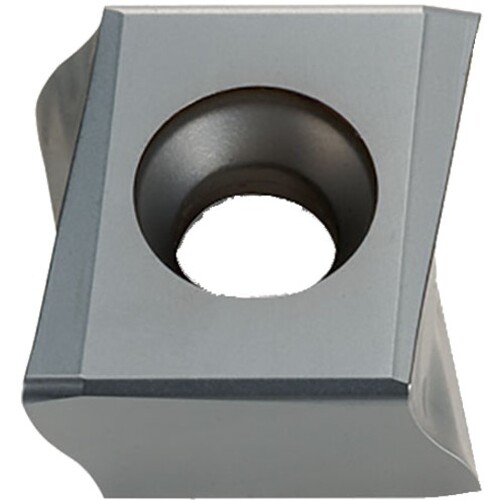

DTM324R001 IN2015 SCREW
Milling Insert; 1/2″ Length × 0.4″ Width × 1/4″ Thickness ; IN2015 ; Carbide ; TiAlN
| Applicable Material | Cast Iron|Non-Ferrous Metals | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | DTM324R001 |
| Cutting Edge Length (L) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.4″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/4″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2015 | Body Material | Carbide |
Product Features
| Family Description | DTM324R001 | Country of Origin | USA |
Shipping Info
Package Weight
0.03
