SDMW080305TN IN2015

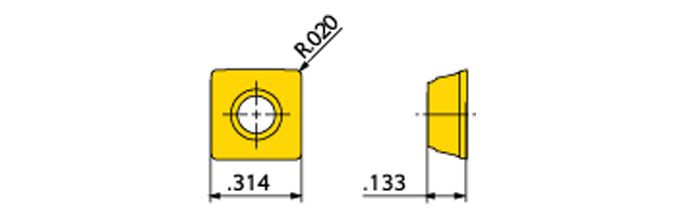

Milling Insert; 0.315″ Length × 0.315″ Width × 0.138″ Thickness ; IN2015 ; Carbide ; TiAlN
| Applicable Material | Steel|Cast Iron | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | SDMW080305TN |
| Cutting Edge Length (L) | 0.315″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.02″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.315″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.138″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2015 | Body Material | Carbide |
Product Features
| Family Description | SDMW080305TN | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
