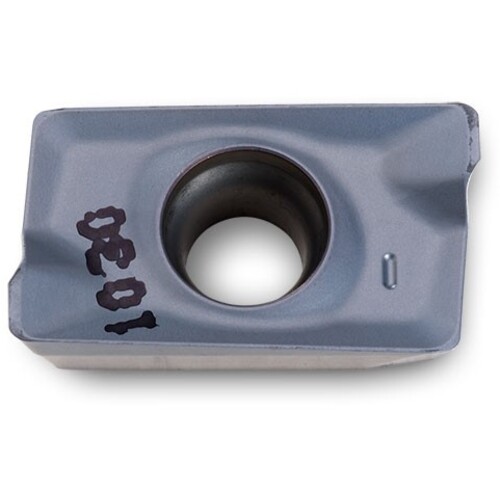

APKT160432R IN30M

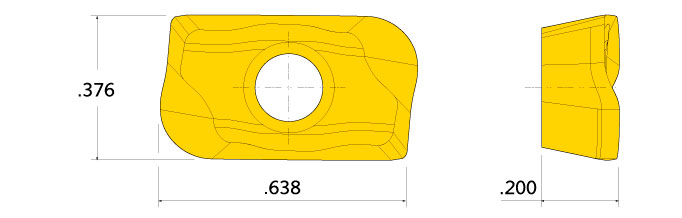

Milling Insert; 0.372″ Length × 0.636″ Width × 0.207″ Thickness ; IN30M ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | APKT160432R |
| Cutting Edge Length (L) | 0.372″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 1/8″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.636″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.207″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IN30M | Body Material | Carbide |
Product Features
| Family Description | APKT160432R | Country of Origin | Israel |
Shipping Info
Package Weight
0.044
