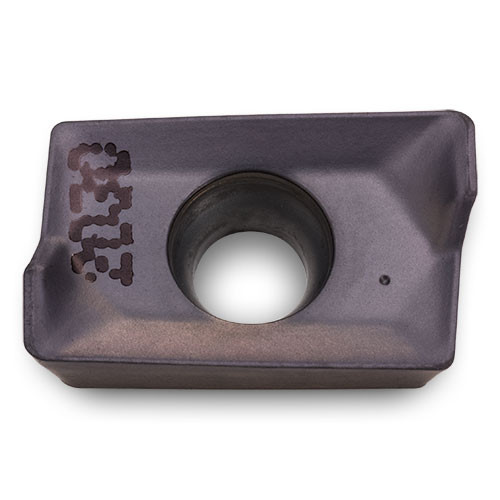

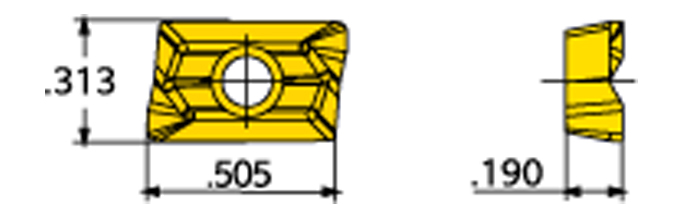

APKT120316R IN2005
Milling Insert; 0.47″ Length × 0.312″ Width × 0.15″ Thickness ; IN2005 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IN2005 |
| Cutting Edge Length (L) | 0.47″ | Shape | Round |
| Insert Length (INSL) | 0.48″ | Insert Style | APKT120316R |
| Corner Radius (RE) | 0.062″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.312″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.15″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.02″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Steel |
Product Features
| Family Description | Diverse corner configurations Designed for multiple materials and applications 2 Indexes | Country of Origin | Israel |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.024
