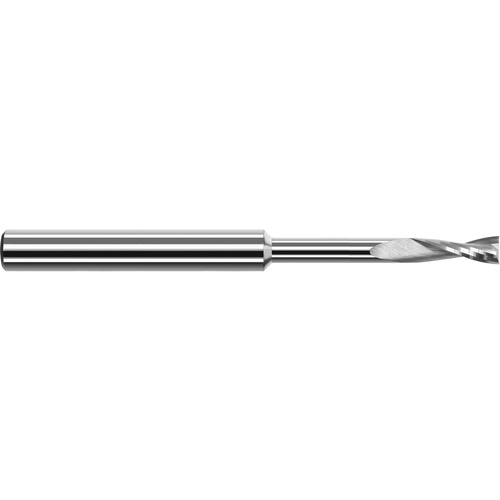

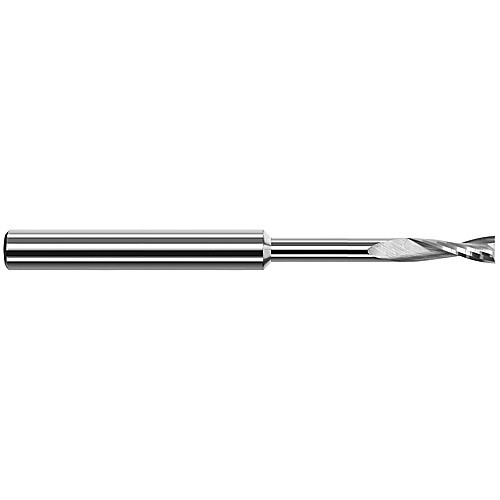

End Mills for Plastics - 2 Flute - 0.0781″ (5/64″) Cutter Diameter × 0.2340″ (15/64″) Length of Cut × 0.6250″ (5/8″) Reach Carbide Square Upcut End Mill for Plastic, 2 Flutes
Square End Mill; 5/64″ Dia. × 15/64″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5/64″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 15/64″ | Applicable Material | | Other Non-Metallic Materials | |
| Overall Length (OAL) | 2″ | Length Group | 8D |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.078125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.012
