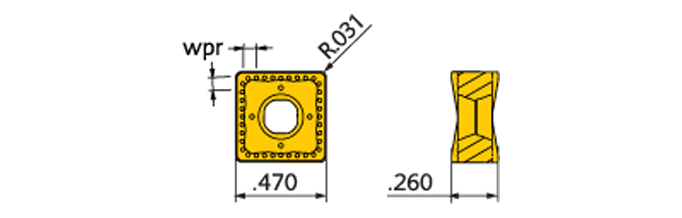

SNGU130608TN IN6515
Milling Insert; 0.47″ Length × 0.47″ Width × 0.26″ Thickness ; IN6515 ; Carbide ; TiCN|Al2O3|TiN
| Applicable Material | | Cast Iron | | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | SNGU130608TN |
| Cutting Edge Length (L) | 0.47″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.47″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.26″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiCN|Al2O3|TiN | Measurement Type | Metric |
| Grade | IN6515 | Body Material | Carbide |
Product Features
| Family Description | SNGU130608TN | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.029
