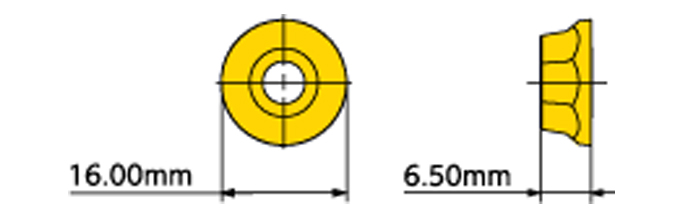

RCLT1606M0TN-PH2 IN2040
| Applicable Material | Steel|Cast Iron | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | RCLT1606M0TN-PH2 |
| Cutting Edge Length (L) | 0.63″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 8″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.63″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.256″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2040 | Body Material | Carbide |
Product Features
| Family Description | RCLT1606M0TN-PH2 | Country of Origin | SOUTH KOREA |
Shipping Info
Package Weight
0.06
