OFMT05T3AFN-HR IN1030

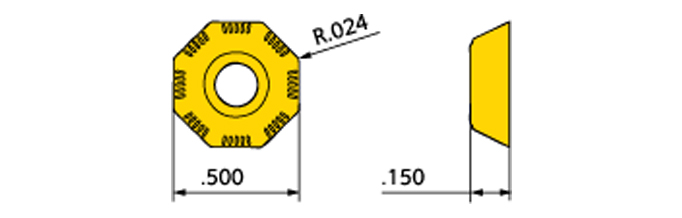

Milling Insert; OFMT05T3AFNHR IN1030 IN1030 1/2″ Length × 1/2″ Width × 0.15″ Thickness ; Carbide ; TiCN
| Applicable Material | Steel|Stainless Steel|Non-Ferrous Metals|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | OFMT05T3AFN-HR |
| Cutting Edge Length (L) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.024″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.15″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IN1030 | Body Material | Carbide |
Product Features
| Family Description | OFMT05T3AFN-HR | Country of Origin | Israel |
Shipping Info
Package Weight
0.02
