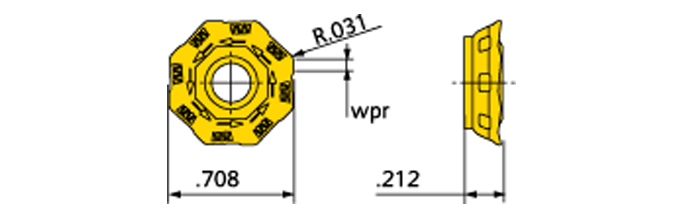

OFCT0705AFFR-W IN1030
Milling Insert; OFCT0705AFFRW IN1030 IN1030 0″ Length × 0″ Width × 0.212″ Thickness ; Carbide ; TiCN
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | OFCT0705AFFR-W |
| Cutting Edge Length (L) | 0″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.212″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IN1030 | Body Material | Carbide |
Product Features
| Family Description | OFCT0705AFFR-W | Country of Origin | Israel |
Shipping Info
Package Weight
0.18
