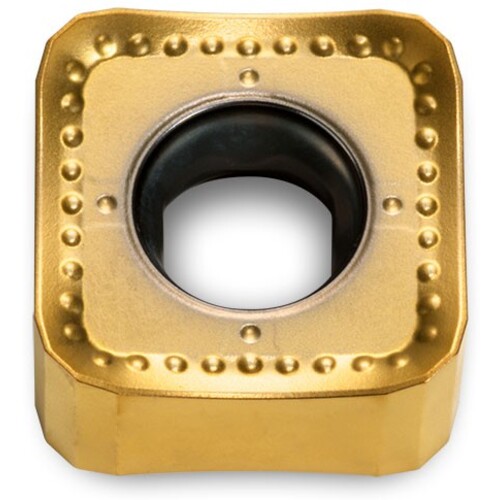

SNGU1205ENN IN6515
Milling Insert; 1/2″ Length × 1/2″ Width × 1/4″ Thickness ; IN6515 ; Carbide ; TiCN|Al2O3|TiN
| Applicable Material | | Cast Iron | | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | SNGU1205ENN |

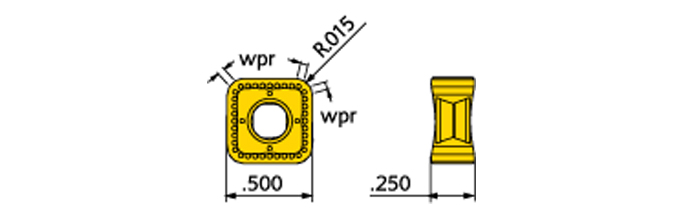

| Cutting Edge Length (L) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.093″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/4″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiCN|Al2O3|TiN | Measurement Type | Metric |
| Grade | IN6515 | Body Material | Carbide |
Product Features
| Family Description | SNGU1205ENN | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.023
