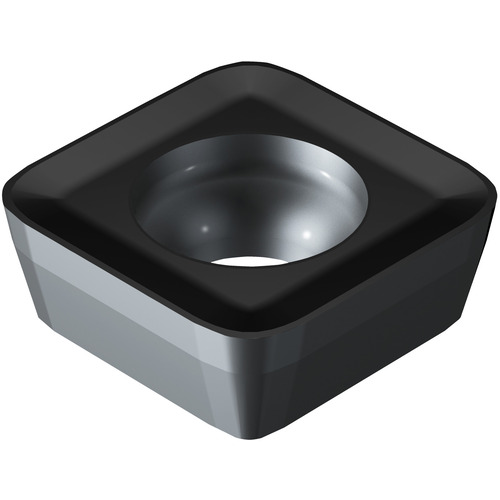

R210090414EMM 1040 Milling Insert
Milling Insert; 5.77 mm Length × 4.5 mm Thickness ; 1040 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | 1040 |
| Cutting Edge Length (L) | 5.77 mm | Shape | Square |
| Corner Radius (RE) | 1.4 mm | Insert Style | R210.09 04 14E-MM |
| Inscribed Circle Diameter (IC) | 9.5 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 4.5 mm | Chip Breaker Type | MM |
| Insert Included Angle (EPSR) | 80 Degrees | Hole Diameter | 4.19 mm |
| Coating | TiAlN | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.11
