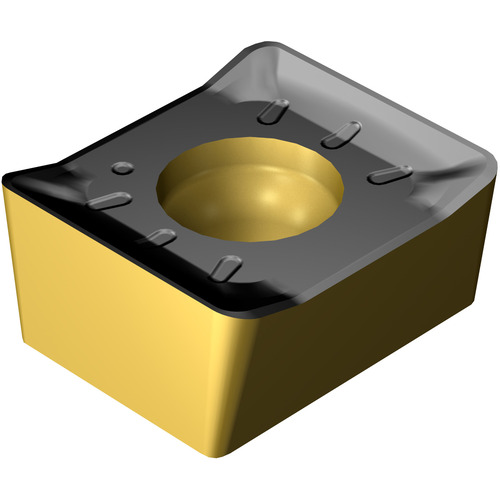

N3311A084508EKL 3220 Insert
Milling Insert; 7.7 mm Length × 9.5 mm Width × 4.45 mm Thickness ; 3220 ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | 3220 |
| Cutting Edge Length (L) | 7.7 mm | Shape | Rectangle |
| Corner Radius (RE) | 0.8 mm | Insert Style | N331.1A-08 45 08E-KL |
| Insert Width (W1) | 9.5 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 8.45 mm | Chip Breaker Type | KL |
| Insert Thickness (S) | 4.45 mm | Hole Diameter | 3.61 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.112
