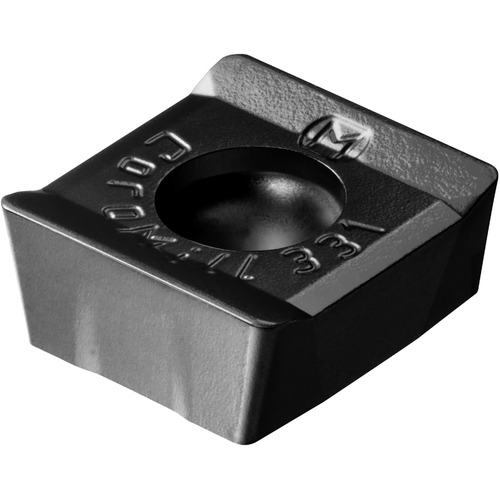

N3311A043505MKM 3040 Insert
Milling Insert; 4.6 mm Length × 9.5 mm Width × 3.5 mm Thickness ; 3040 ; Carbide ; | Al2O3 | TiC |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Grade | 3040 |
| Cutting Edge Length (L) | 4.6 mm | Shape | Rectangle |
| Corner Radius (RE) | 0.5 mm | Insert Style | N331.1A-04 35 05M-KM |
| Insert Width (W1) | 9.5 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 8.45 mm | Chip Breaker Type | KM |
| Insert Thickness (S) | 3.5 mm | Hole Diameter | 2.59 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | | Al2O3 | TiC | |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.060
