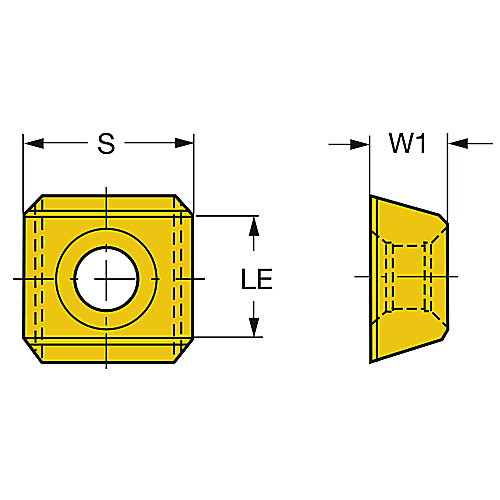

SDMX150608 3040 Auto Milling Insert
Milling Insert; 11 mm Length × 6.35 mm Thickness ; 3040 ; Carbide ; | Al2O3 | TiC |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Grade | 3040 |
| Cutting Edge Length (L) | 11 mm | Shape | Square |
| Corner Radius (RE) | 0.8 mm | Insert Style | SDMX 15 06 08 |
| Inscribed Circle Diameter (IC) | 15.875 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | Flat Top |
| Insert Included Angle (EPSR) | 90 Degrees | Hole Diameter | 5.59 mm |
| Coating | | Al2O3 | TiC | | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.344
