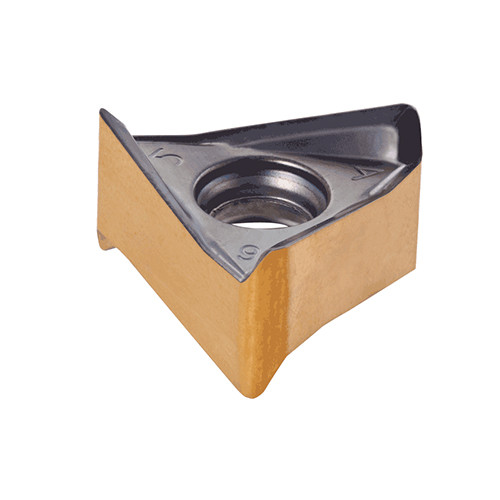

H690 TNKX 100504PNTR IC5400
Milling Insert; H690 TNKX 100504PNTR IC5400 × 0.185″ Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Grade | IC5400 |
| Application | | Facing | Shouldering | Slotting | | Shape | Triangle |

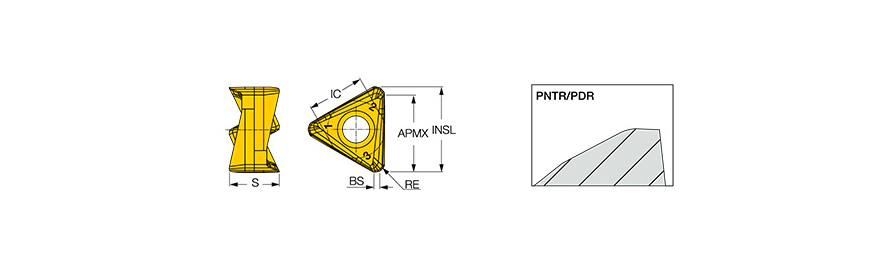

| Insert Length (INSL) | 0.334″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.244″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.185″ | Number of Cutting Edges | 6 |
| Wiper Edge Length (BS) | 0.031″ | Cutting Edge Effective Length (LE) | 0.315″ |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | Triangular inserts with 6 helical cutting edges for 90° general use applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
