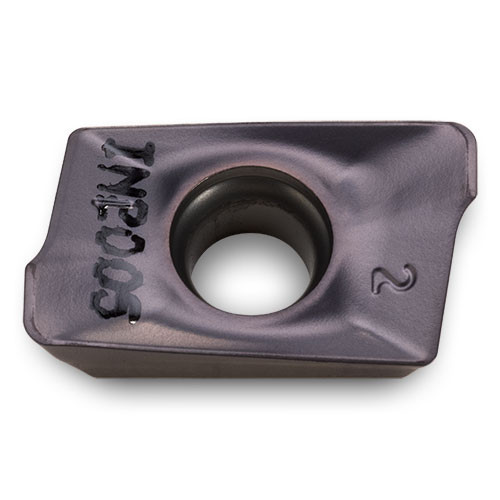

AOMT120416R IN2005
Milling Insert; 0.49″ Length × 0.328″ Width × 0.187″ Thickness ; IN2005 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IN2005 |
| Cutting Edge Length (L) | 0.49″ | Shape | Round |
| Insert Length (INSL) | 0.573″ | Insert Style | AOMT120416R |
| Corner Radius (RE) | 0.062″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.328″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.027″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Steel |
Product Features
| Family Description | Diverse corner configurations Designed for multiple materials and applications 2 Indexes | Country of Origin | S.Korea |
Shipping Info
Package Length
.56000
Package Width
.56000
Package Height
.32000
Package Weight
0.02
