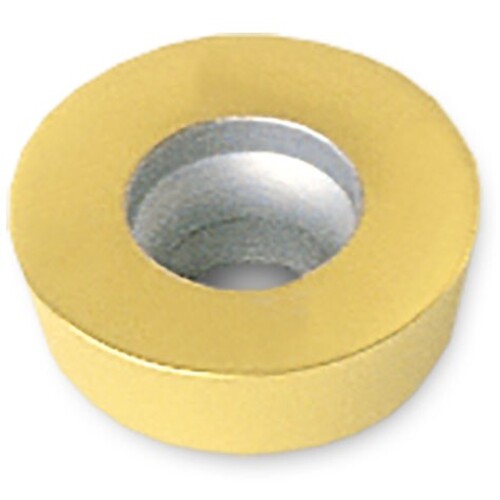

RPLW120400TN IN2030

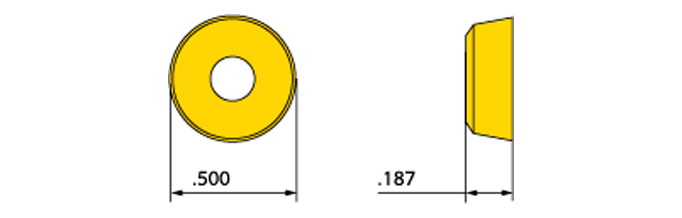

Milling Insert; 1/2″ Length × 1/2″ Width × 0.187″ Thickness ; IN2030 ; Carbide ; TiAlN
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | RPLW120400TN |
| Cutting Edge Length (L) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 1/4″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2030 | Body Material | Carbide |
Product Features
| Family Description | RPLW120400TN | Country of Origin | USA |
Shipping Info
Package Weight
0.02
