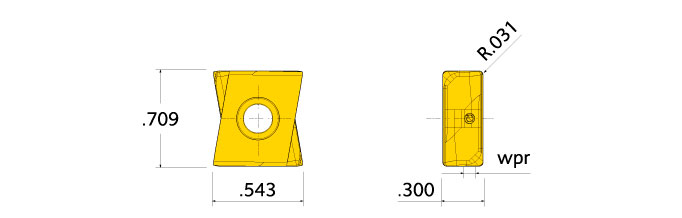

DNM434R201 IN2015
| Applicable Material | Cast Iron|Non-Ferrous Metals | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | DNM434R201 |
| Cutting Edge Length (L) | 0.709″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.543″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.3″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IN2015 | Body Material | Carbide |
Product Features
| Family Description | DNM434R201 | Country of Origin | USA |
Shipping Info
Package Weight
0.07
