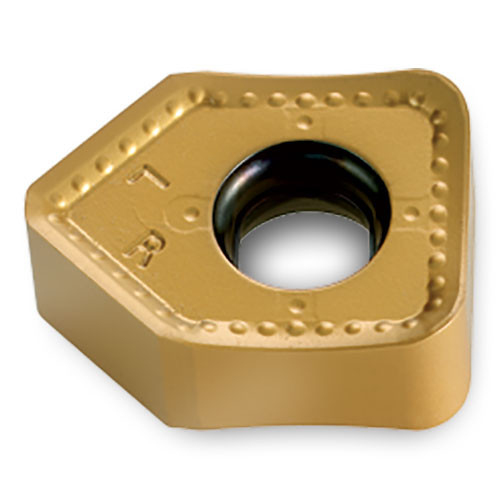

SNGS1205ANN-W IN2505
Milling Insert; SNGS1205ANNW IN2505 IN2505 × 1/4″ Thickness ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Insert Style | SNGS1205ANN-W |
| Inscribed Circle Diameter (IC) | 1/2″ | Corner Chamfer Width (CHW) | 0.04″ |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Wiper Edge Length (BS) | 0.275″ | Cutting Edge Material | Carbide |
| Coating | TiAlN+TiN | Number of Cutting Edges | 2 |
| Grade | IN2505 | Measurement Type | Inch |
| Shape | Round | Body Material | Steel |
Product Features
| Family Description | For use in one cutter pocket Designed for multiple materials and applications 2 indexes | Country of Origin | S.Korea |
Shipping Info
Package Length
.60000
Package Width
.60000
Package Height
.18900
Package Weight
0.028
