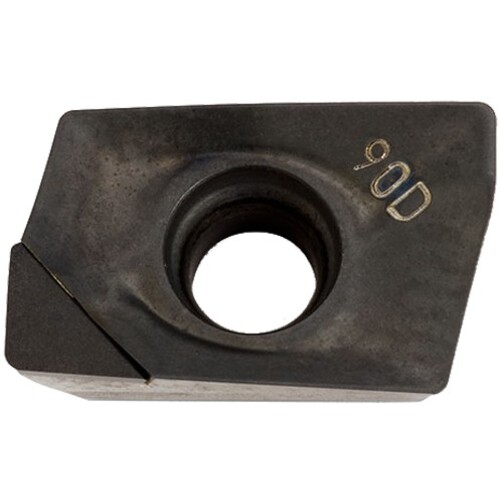

BOMT09T304R-DT1 IN90D
Milling Insert; BOMT09T304RDT1 IN90D IN90D 0.12″ Length × 0.26″ Width × 0.147″ Thickness
| Applicable Material | | Non Ferrous Metals | | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | BOMT09T304R-DT1 |
| Cutting Edge Length (L) | 0.12″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Insert Length (INSL) | 0.421″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.015″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.26″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.147″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Wiper Edge Length (BS) | 0.06″ | Number of Cutting Edges | 1 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IN90D | Body Material | Steel |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
