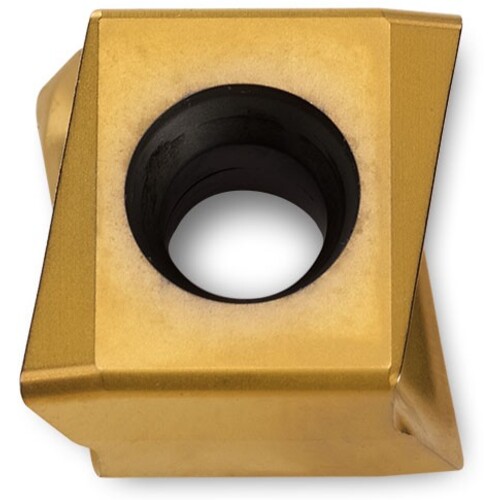

DGM315-001 IN2540
Milling Insert; 0.413″ Length × 0.461″ Width × 0.315″ Thickness ; IN2540 ; Carbide ; TiAlN|TiN
| Applicable Material | Steel|Cast Iron | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Insert Style | DGM315-001 |
| Cutting Edge Length (L) | 0.413″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.461″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN|TiN | Measurement Type | Metric |
| Grade | IN2540 | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
