ZPCW5004-QBN BX950
Milling Insert; ZPCW5004-QBN BX950 CBN BX950 × 4.76 mm Thickness ; PCBN

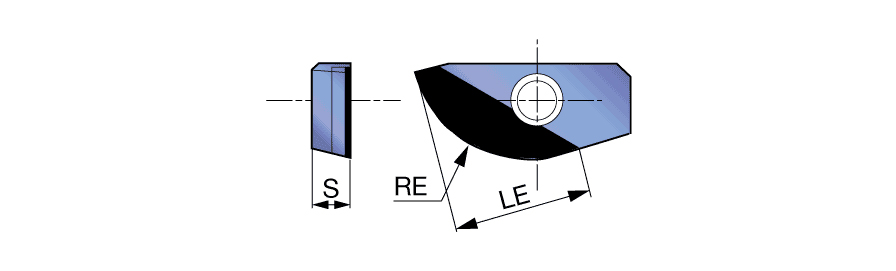

| Applicable Material | Cast Iron |Hi Temp Alloys | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Pocket Milling | Profiling | Ramping | | Cutting Edge Material | PCBN |
| Corner Radius (RE) | 25 mm | Tool Type | Mill Ultra hard Inserts |
| Insert Thickness (S) | 4.76 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiCN | Cutting Edge Effective Length (LE) | 28 mm |
| Grade | BX950 | Measurement Type | Metric |
| Shape | Round | Body Material | Carbide |
Product Features
| Family Description | Round shape edge with CBN for ball-nose endmill | Country of Origin | Japan |
Shipping Info
Package Weight
0.009
