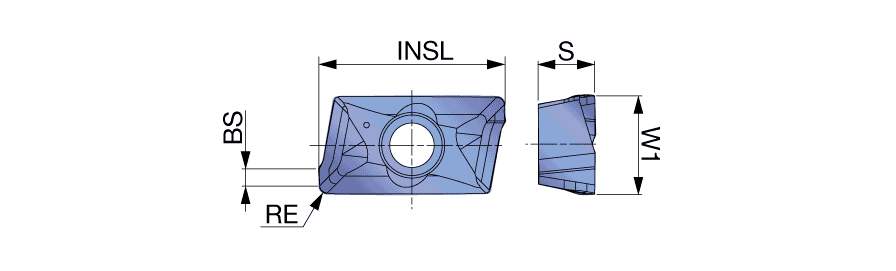

ASMT11T308PDPR-MJ T1115
| Applicable Material | Steel | | Coating | TiCN+Al2O3+TiN |
| Application | | Shoulder Milling | | Grade | T1115 |
| Insert Length (INSL) | 12.3 mm | Shape | 85° Parallelogram |
| Corner Radius (RE) | 0.8 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 10.6 mm | Cutting Edge Material | Carbide |
| Insert Width (W1) | 6.7 mm | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 6.7 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Insert Thickness (S) | 3.7 mm | Cutting Edge Effective Length (LE) | 12.3 mm |
| Wiper Edge Length (BS) | 1.4 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 11 Degrees | Body Material | Carbide |
Product Features
| Family Description | High performance insert with MJ chipbreaker for general purpose | Country of Origin | Japan |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
0.008
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R".
