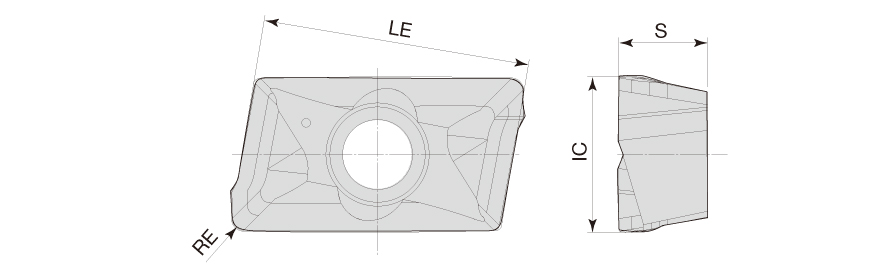

ASMT170512PDPR-MJ AH130
Milling Insert; ASMT170512PDPR-MJ AH130 AH130 × 9.8 mm Width × 5.6 mm Thickness ; Carbide ; TiAlN
| Applicable Material | Steel|Stainless Steel | Shape | 85° Parallelogram |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 1.2 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 16 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 9.8 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 5.6 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH130 |
Product Features
| Family Description | High performance insert with pressed MJ chipbreaker for general purpose | Country of Origin | Japan |
Shipping Info
Package Weight
0.022
