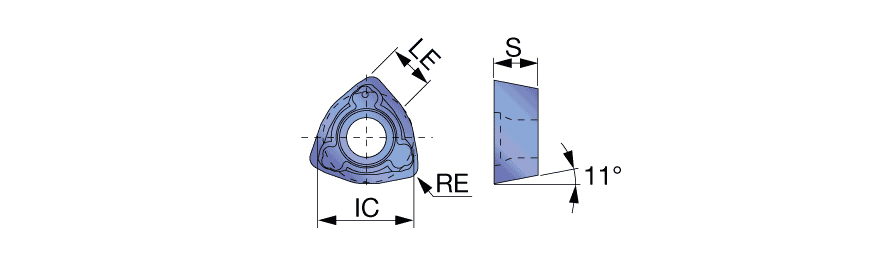

WPMT090725ZPL-ML T9115
Milling Insert; WPMT090725ZPL-ML T9115 T9115 × 0.276″ Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | Steel | | Shape | Round |
| Application | | High feed Milling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.098″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.118″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.591″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 0.276″ | Cutting Edge Effective Length (LE) | 0.354″ |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9115 | Body Material | Carbide |
Product Features
| Family Description | Trigon insert with ML chipbreaker with low cutting forde | Country of Origin | Japan |
Shipping Info
Package Weight
0.036
