SEKR42AFSR-MJ GH330
Milling Insert; SEKR42AFSR-MJ GH330 ISO GH330 × 1/2″ Width × 1/8″ Thickness ; Carbide
| Applicable Material | Steel |Stainless Steel | | Grade | GH330 |
| Application | | Chamfering | Face Milling | | Shape | Round |
| Corner Radius (RE) | 7.94 mm | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Depth of Cut Maximum (APMX) | 0.157″ | Cutting Edge Material | Carbide |

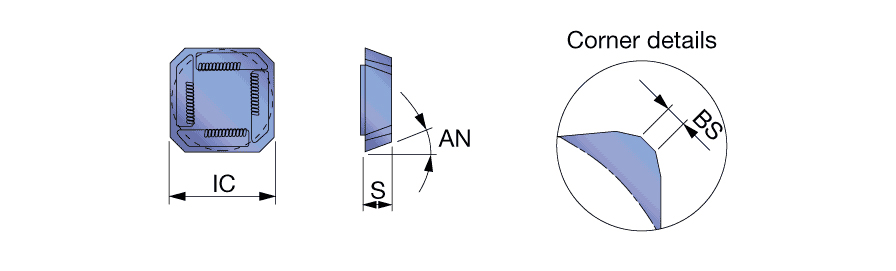

| Insert Width (W1) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Coating | TiCNO | Body Material | Carbide |
Product Features
| Family Description | Square insert with pressed "MJ" chipbreaker for 45deg cornerangle | Country of Origin | Japan |
Shipping Info
Package Weight
0.014
