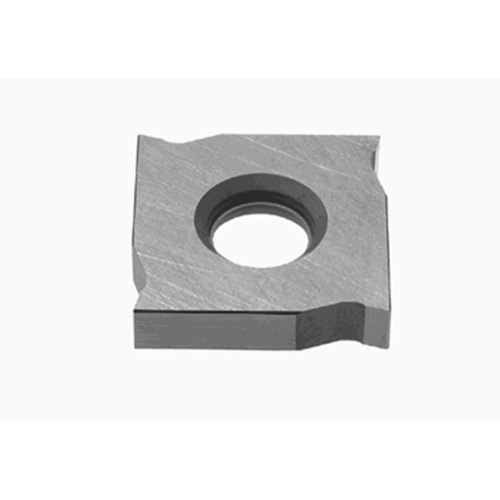

SDEN1504AETN AH330

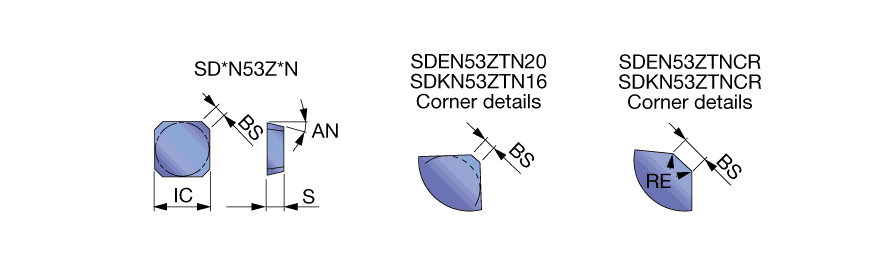

Milling Insert; SDEN53ZTN AH330 ISO MILL AH330 × 5/8″ Width × 0.187″ Thickness ; Carbide ; TiAlN
| Applicable Material | Steel | Grade | AH330 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Square |
| Corner Radius (RE) | 7.94 mm | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 5/8″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Included Angle (EPSR) | 15 Degrees | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Flat-top square insert with 15deg relief angle, for large depth of cut | Country of Origin | Japan |
Shipping Info
Package Weight
0.03
