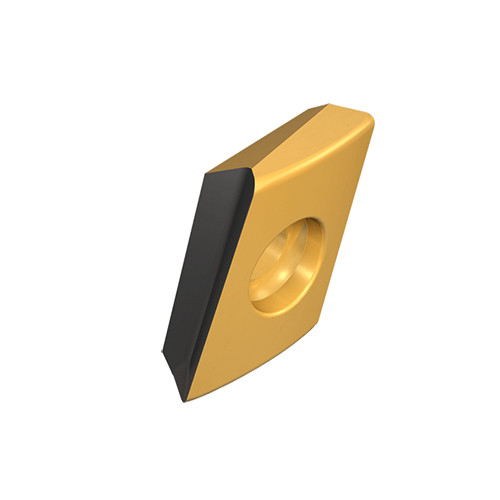

T290 LNMT 150608TR IC830
Milling Insert; T290LNMT150608TR IC830 IC830 × 0.22″ Width × 0.453″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0087 ″/tooth |

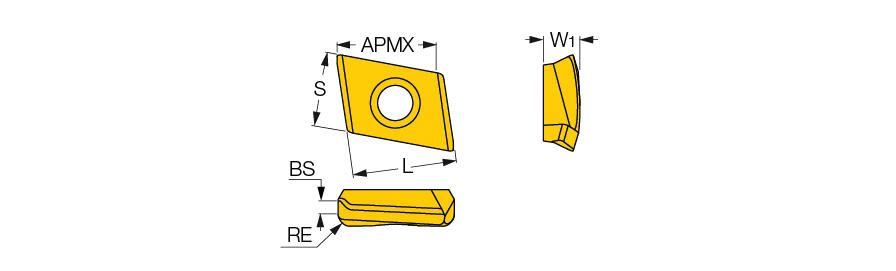

| Insert Length (INSL) | 0.626″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.591″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.22″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.453″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | SUMOMILL Tangential insert with 2 cutting edges. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts. |
Shipping Info
Package Weight
0.023
