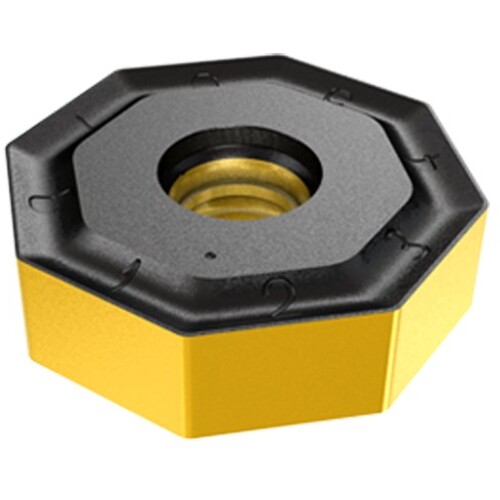

ONMU080608TNMM IC4050
Milling Insert; ONMU080608TNMM IC4050 IC4050 × 0.236″ Thickness
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | 135° Octagon |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.0118 inch/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.217″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.795″ | Minimum Feed per Tooth (fz(min)) | 0.0079 inch/tooth |
| Insert Thickness (S) | 0.236″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC4050 |
Product Features
| Family Description | 16MILL, octagonal milling inserts with 16 cutting edges. Used for machining steel. | Country of Origin | Israel |
| Remarks | For FEEDMILL tools, see the feed conditions on the FF NM tools. |
Shipping Info
Package Length
.80000
Package Width
.80000
Package Height
.23000
Package Weight
0.057
