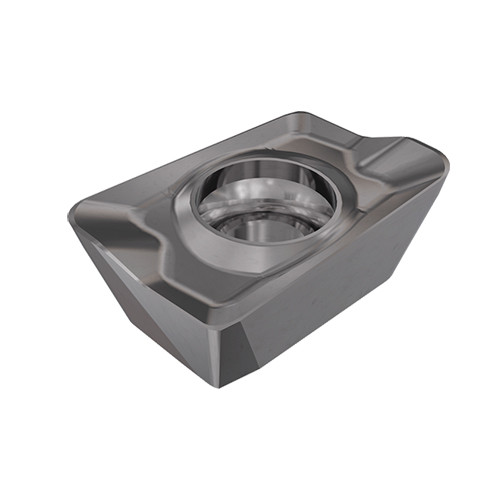

ADKT 1505PDTR-76 IC830
Milling Insert; 0.62″ Length × 0.376″ Width × 0.222″ Thickness ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Shape | 85° Parallelogram |

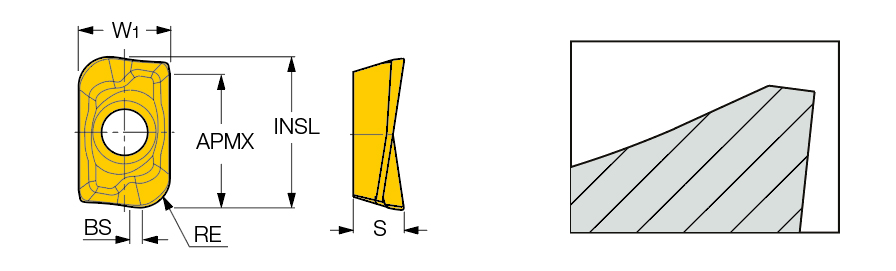

| Cutting Edge Length (L) | 0.62″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.62″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0394″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.4724″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.376″ | Cutting Edge Effective Length (LE) | 0.547″ |
| Insert Thickness (S) | 0.222″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.063″ | Body Material | Carbide |
| Coating | AlTiN+TiN |
Product Features
| Family Description | HELIMILL inserts with 2 helical cutting edges and various corner radii for general use | Country of Origin | Israel |
| Remarks | For inserts with corner radii larger than .079, the cutter body and seats should be modified Inserts with corner radii larger than .031 should be used on ADK & SM tools only on the face of the cutter |
Shipping Info
Package Length
3.65700
Package Width
1.37400
Package Height
.23000
Package Weight
0.014
