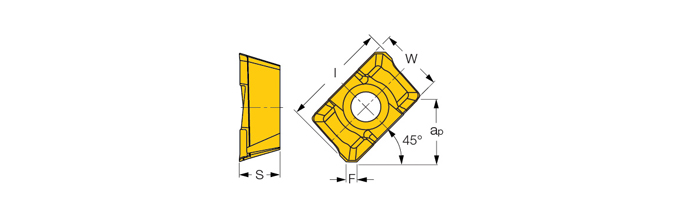

ADMT 1505ADR-HS
| Applicable Material | Steel|Cast Iron | Grade | IC950 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.624″ | Maximum Feed per Tooth (fz(max)) | 0.0098 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.335″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.378″ | Minimum Feed per Tooth (fz(min)) | 0.0059 inch/tooth |
| Insert Thickness (S) | 0.227″ | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.067″ | Body Material | Carbide |
| Coating | TiCN |
Product Features
| Family Description | HELIMILL inserts with serrated cutting edges for chip splitting, for roughing applications on 45° milling cutters. | Country of Origin | Israel |
| Remarks | Serrated cutting edge for chip splitting. Self-balanced forces on rake face. Use for long overhang and extended flute cutters with reduced chatter. |
Shipping Info
Package Length
.62500
Package Width
.37500
Package Height
.25000
Package Weight
0.016
