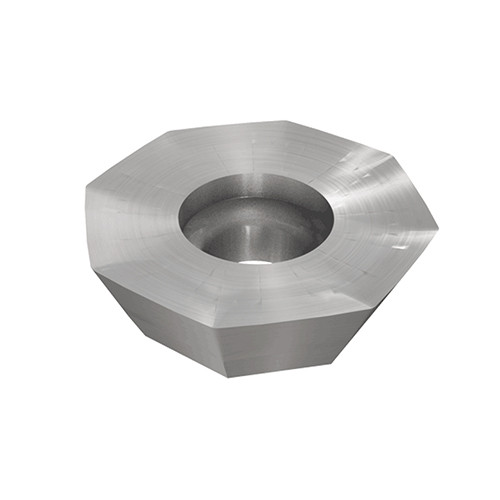

OECR 060405AER IC808
Milling Insert; OECR 060405AER IC808 IC808 × 0.193″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |

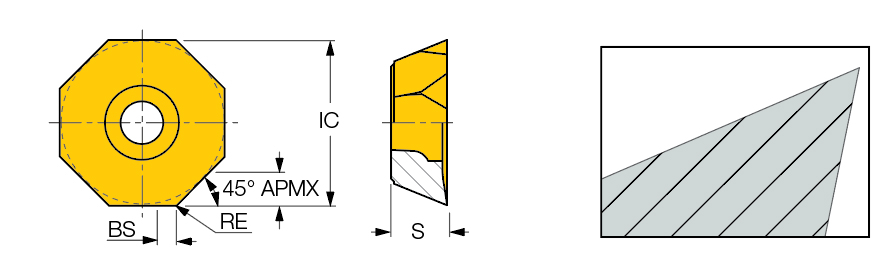

| Insert Length (INSL) | 0.219″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.146″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.569″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Thickness (S) | 0.193″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Wiper Edge Length (BS) | 0.063″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts with positive rake (P - polished) and sharp cutting edges. Recommended for machining high silicon aluminum, titanium and magnesium. | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
