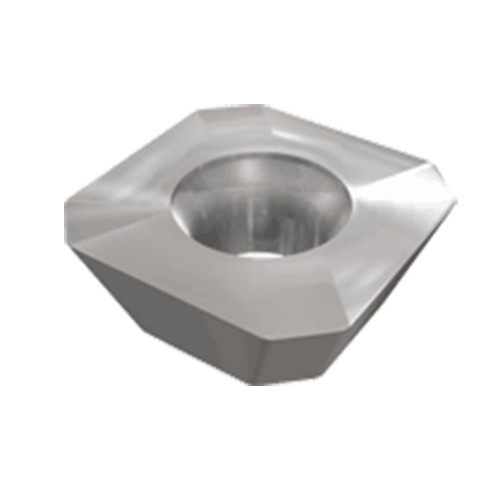

SEMW 43AFTN IC950
Milling Insert; SEMW43AFTN IC950 IC950 × 0.187″ Thickness ; Carbide
| Applicable Material | | Steel | Cast Iron | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 1/2″ | Cutting Direction (HAND) | Right / Left |
| Depth of Cut Maximum (APMX) | 0.256″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Wiper Edge Length (BS) | 0.087″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | Flat rake, square milling inserts used for 45° general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
